Durable Smd Components Soldering Machine , 8 Zones Reflow Soldering System

Name: Durable Smd Components Soldering Machine 8 Zones Reflow Soldering System
Brand: Jaguar
Price: 1 USD

Brand Name : Jaguar

Model Number : M8

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 30 Sets/month

Delivery Time : 3-7days

Packaging Details : Wooden packing

Application : SMT Line PCB assembly

Heating Zones : 8 Zones

Heating Zone Length : 2900mm

Temperature range : Room Temperature ~ 300

Max PCB Width : 50-350mm

Heating method : Hot Air

Contact Now

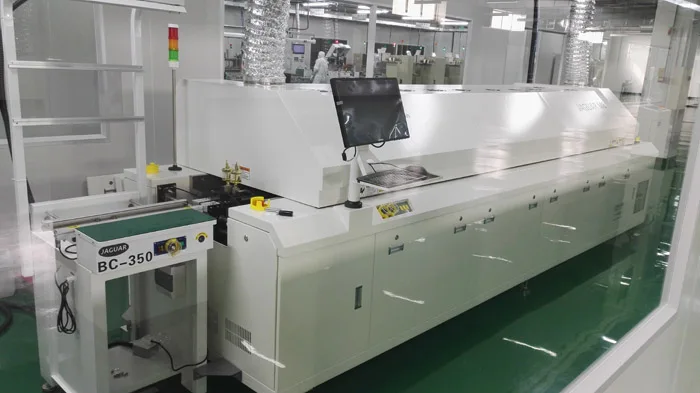

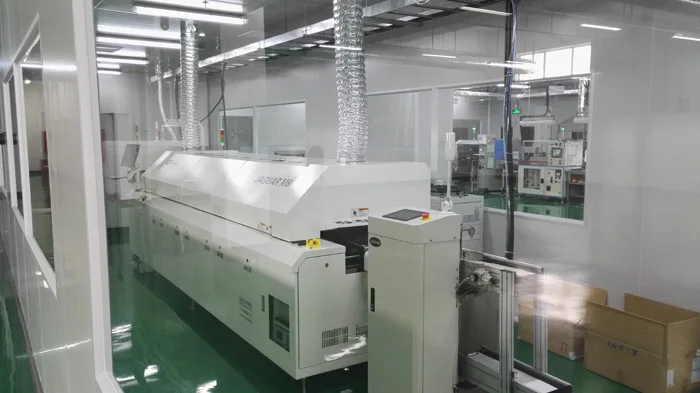

Jaguar Hot Air Lead Free Reflow Oven Machine M8

Specification:

Model	SMT reflow oven Jaguar M8
Reflow oven Heating System	Number of heating zones	Up 8/ bottom 8
	Number of cooling zones	2
	Length of heating zones	2900mm
	Heating mode	Hot air
Reflow oven Conveyor System	Max. Width of PCB	350mm
	Mesh belt width	400mm
	Transmission Direction	L→R(option: R→L)
	Transmission Net Height	900±20mm
	Transmission type	Mesh and chain
	Range of rail width	50-400mm
	Conveyor speed	0-1000mm/min
	Auto/manual Lubrication	Standard
	Fixed rail side	Front rail fixed(option: rear rail fixed)
	Components high	Top and bottom 25mm
Reflow oven Control system	Power supply	5 line 3 phase 380V 50/60HZ
	Total power	26KW
	Starting power	30KW
	Normal power consumption	5-8KW
	Warming time	20 mins
	Temp. setting range	From room temp. To 300℃
	Temp. control method	PID close loop control & SSR driving
	Temp. control precision	±1℃
	Temp. deviation on PCB	±2℃
	Data storage	Process Data and status storage(80GB)
General	Dimension(LWH)	460011001490mm
	Weight	1000kg
	Color	Computer gray

Reflow oven introduction:

1. The brand computer and Siemens PLC intelligent control system, high precision temperature control is ± 1-2 ℃ (if the computer crash accident, it can realize off-line work, do not affect production) and to ensure that the control system is stable and reliable;

2. Windows XP operating interface with powerful and simple operation.

3.In order to ensure safety and reliability, the cylinder body can be lift up automatically.

4. Device is equipped with mesh belt, transport smoothly, no shaking and no deformation, which ensure smooth PCB transport. Synchronous guide transmission mechanism and automatic SMT machine online connection ensure that guide adjustable wide precision and high service life.

5. Automatic control lubrication system and automatic lubrication transmission chain.

Durable Smd Components Soldering Machine , 8 Zones Reflow Soldering System

M8 Reflow oven detail:

Durable Smd Components Soldering Machine , 8 Zones Reflow Soldering System

Control System And Heating System:

1. Stability control system;PID closed loop controls,sampling interval of 0.2sec,

2. independent heating zone shutdown features.Built-in standby power supply.

Durable Smd Components Soldering Machine , 8 Zones Reflow Soldering System

Reliable Conveyor System:

1. The rail is dealt with hardened process to make it more stability.

2. The conveyor chain adpoted with single Pin-plate design,Simple and practical.
