Jaguar 3 Zones SMT Soldering Machine High Performance 750mm PCB Conveyor Height

Name: Jaguar 3 Zones SMT Soldering Machine High Performance 750mm PCB Conveyor Height
Brand: JAGUAR
Price: 1 USD

Buy cheap Jaguar 3 Zones SMT Soldering Machine High Performance 750mm PCB Conveyor Height product

Brand Name : JAGUAR

Model Number : N300

Certification : CE ISO

Place of Origin : China

MOQ : 1

Price : Negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 30 Sets/month

Delivery Time : 3-7days

Packaging Details : Wooden packing

Product name : Wave soldering machine

Model : Jaguar N300

PCB board width : max 300mm

PCB conveyor height : 750mm

Spray method : SMC & ST-8 nozzle

Flux capacity : max 5.2L

preheating length : 1450mm

preheating zone quanlity : 3 zones

Solder volume : 280KG

Weight : 1200KG

Contact Now

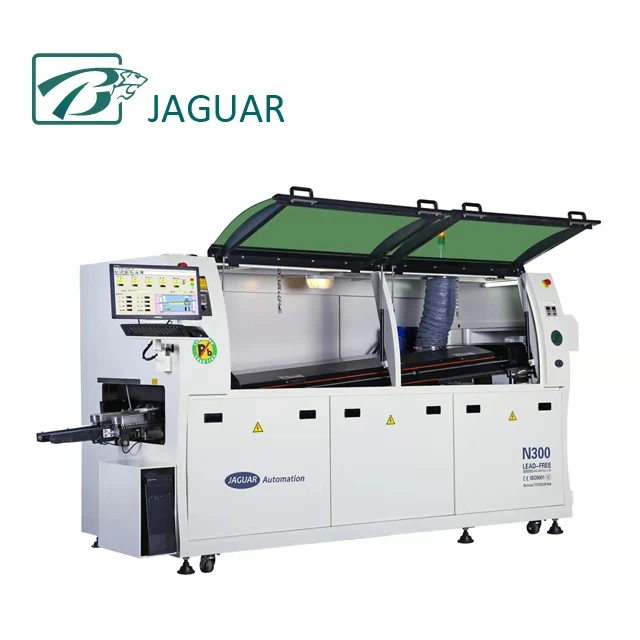

SMT Machine Lead-Free Hot Air Wave soldering Machine Jaguar N300

Product Description:

1. Automatic conveying power system and auto synchronous board feeding functions.

2. Tin stove peak uses frequency conversing speed adjustment which can independently control the wave peak height.

3. Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.

4. PLC is used to control the machine, to ensure the reliability and stability of the system.

5. With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.

6. Special alloy transportation chain claws, non-stick tin and ensures the quality of welding PCB board.

7. Tin stove adopts imported high frequency conversion motor independent control, stable performance.

8. Lead-free solder furnace with independent design, environment protection and safety, easy to clean.

9. Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.

10. Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.

11. Reasonable design and sensitive fault security alarm system ensure the stable performance and operators’ safety.

Specifications:

Model No	JAGUAR N200
Number of Pre-heater	1
Pre-heater passage	500mm
Body size	140012001600
Outside dimension	210012001600
Weight	700KG
Component lead	Within 10 mm
Total/steady consumption	9KW/3-5KW
Air supply	0.5MPa
Preheating style	IR(standard)
Preheater consumption	220V 5KW
Control method	Button+PLC(Option: Touch screen or PC)
Range of temp. setpoint	Room temperature---300ºC
Preheating time	About 10-15mins for setting 150ºC
Solder Application	Lead-free / Sn-Pb
Solder pot capacity	180KG
Solder pot temperature	300ºC
Solder pot consumption	380V 6KW
Solder temp. control method	PID&SSR
Wave motor consumption	500W 220V
Solder melting	About 120mins for setting 250ºC
PCB width	50-200mm
Conveyor speed	300-1800mm/min
Conveyor direction	L→R (R→L optional)
Conveyor inclination	4-7 º
Flux pressure	3-5 bar
Flux capacity	3.2L
